Tact Switches

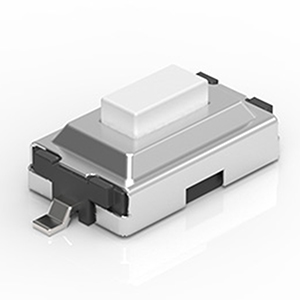

TACT SWITCH -01 3x6x2.5mm micro smd tact switch 2 pin
- Mounting Type: Snap in / SMT / Embedded
- Feature: Other/MINI/MULTIFUNCTION/LED/SELICONE
- SIZE: 5.2/4.5/4.8/3*6/6*6/6.2*6.2/12*12
- Height: 1.0mm - 8.0 mm
- Product description: 3x6x2.5mm micro smd tact switch 2 pin
Applications
※ Operating switches in all types of electronic equipment such as
※ Audio apparatus,office equipment,communication apparatus
※ Measuring instruments,TV sets,TVRs,etc
Features
※ Compact,low-profile surface-mounting type keyboard seitches ideal for High-density mounting
※ Contacts are completely sealed,enhancing reliability
※ Reflow solderable
※ Sharp “click” feel with a positive tactile feedback
Specification of tact switch series
|
Temperature |
30~60℃ |
Withstand Voltage |
DC 12V05A |
|
Relative Humidity |
≤95%40℃ |
Life |
≥1000 ycles |
|
Withstand Voltage |
AC250V（50Hz）1min |
Contact Resistance |
≤30mg |
|
Action Force |
100-300gf |
Insulation Resistance |
≥100Mg |
